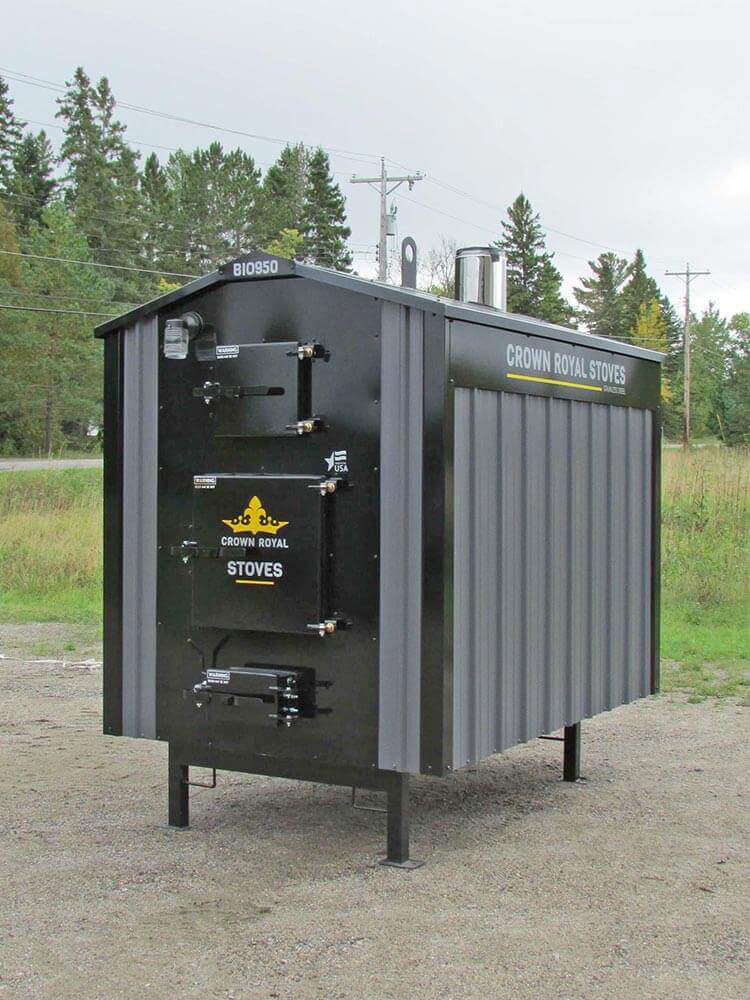

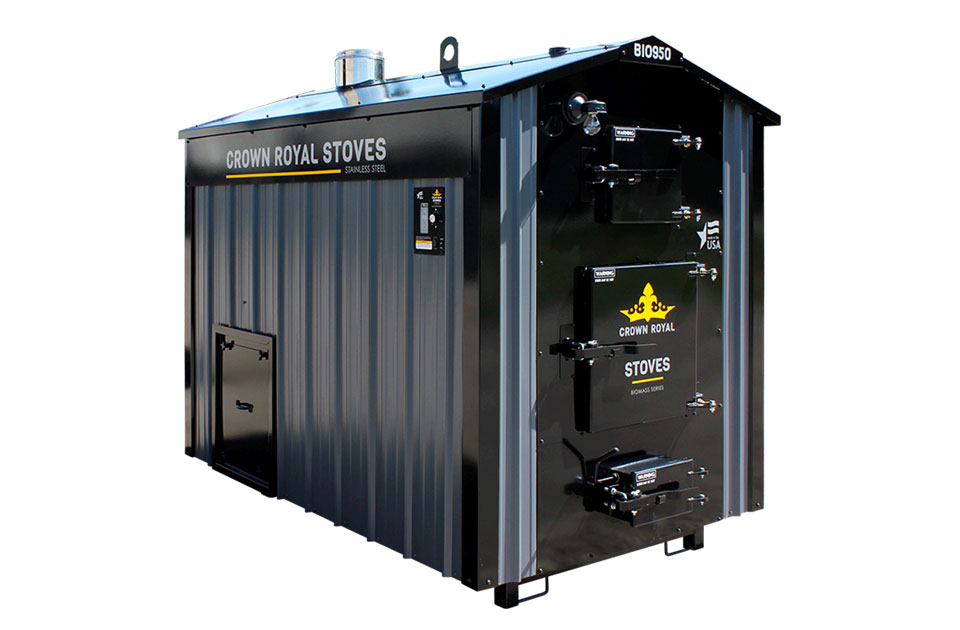

Crown Royal Biomass BIO950

How can we help?

Let’s get in touch!!

Crown Royal Stove’s wood chip boiler is an automated fed system with a storage bin, designed to be located next to your fuel storage for convenience, and is normally filled once a week (or longer), depending on the temperature outside and BTU’s needed. Our wood chip boiler burns numerous types of fuel: woods chips, wood pellets, coal, silage, etc. The ability to burn multiple fuel types provides significant value, as almost all users can access at least one or two locally sourced biomass fuels for a fraction of the price of propane or natural gas.



Technical Information

Weight 4000 lbs
Width x Length x Height 64" x 92" x 93"
Chimney Size 6"
Door Size 22" x 22"
Supply Size (2) 2"
Return Size (2) 2"
Water Capacity 420 gallons
Lower Primary Combustion Blower 150 CFM
Over Fire Combustion Blower 150 CFM
Negative Pressure Exhaust Motor 3,450 RPM
BTU Output 950,000 BTU/hr
Insulation Roof R30
Insulation Walls R30
409 Stainless Steel YES
Shaker Grate
Removable Ash Pan
Ultra-Temp Insulated Stainless Steel Chimney
Over Fire Air
Water Level Indicator
Triple Pass Heat Exchanger
Water Filled Heat Exchanger Tubes
Fire Tube Heat Exchanger
